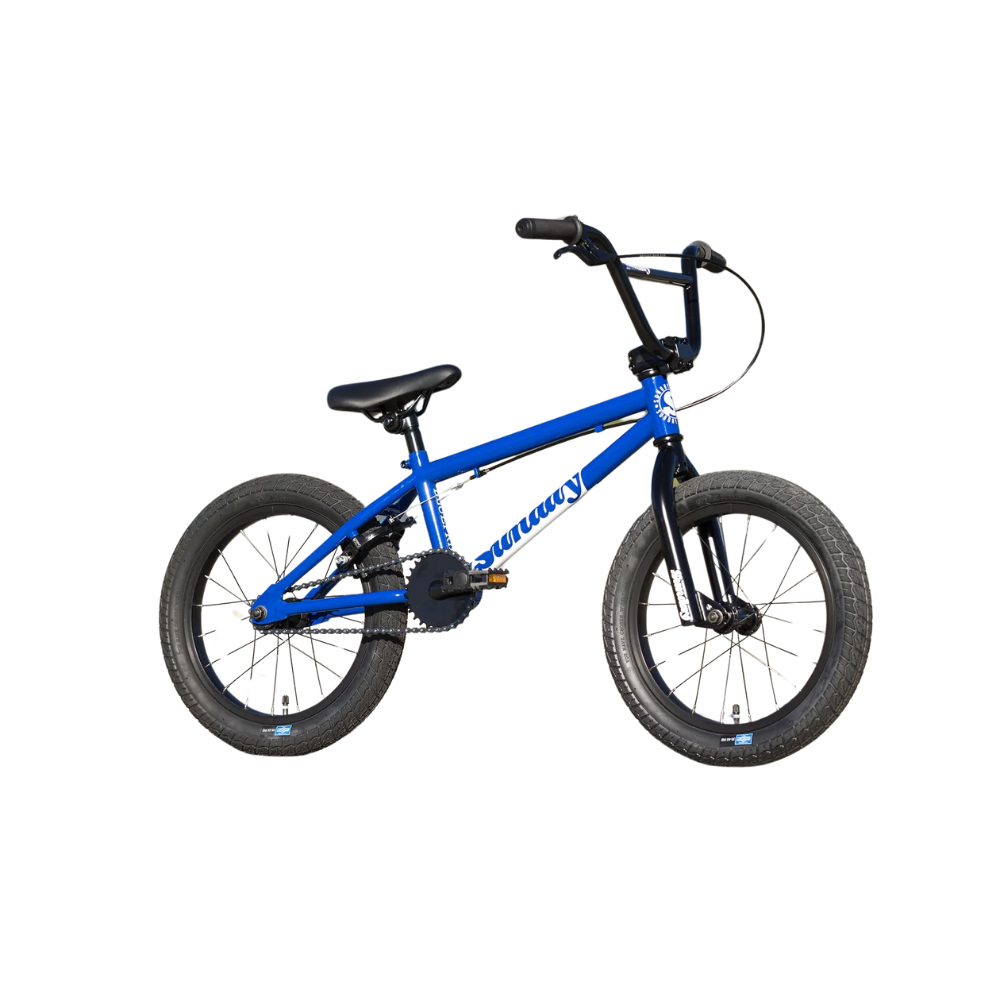

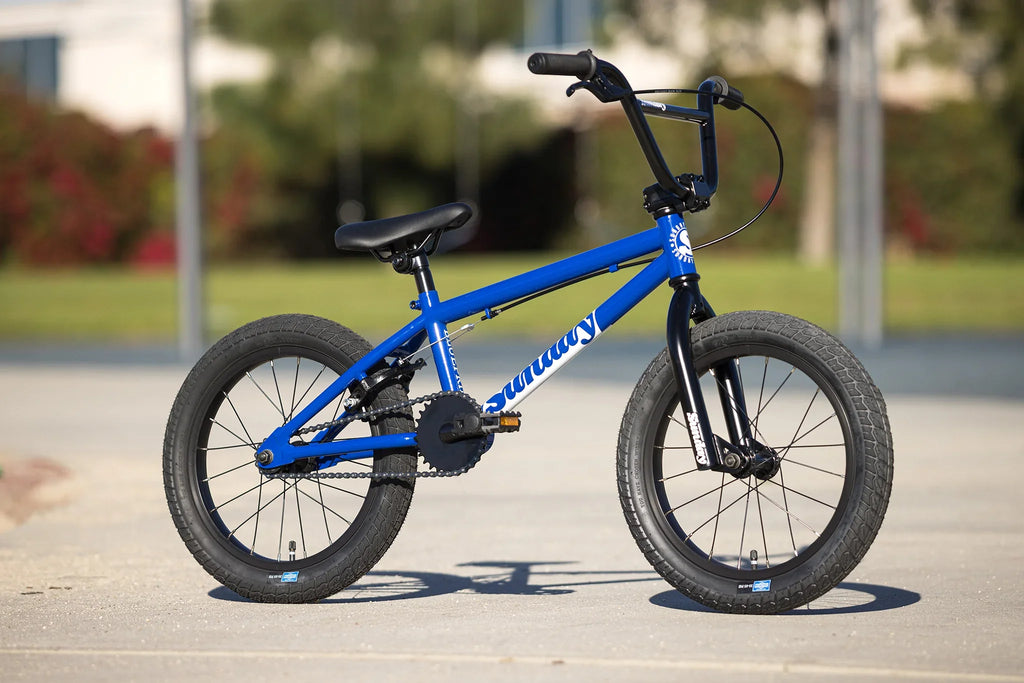

Sunday Blueprint 16″ Complete BMX Bike - Gloss Sunday Blue

The Blueprint 16" is ready to help kids of all ages learn to ride.

Sunday's entry-level 16” bikes are fun and easy to use so kids can keep learning and keep riding. Simplicity and reliability are the goals with the Blueprint, and details like an adjustable seat and an adjustable reach brake lever mean that you can get the bike set up perfectly for riders of all sizes.

Key Features

• Adjustable Junior Saddle
• Sunday Current 16" Tires
• 13t Odyssey Freewheel
• Odyssey Springfield Brakes
• Odyssey Quik Slic Kable
• KMC S1 Chain

Specifications:

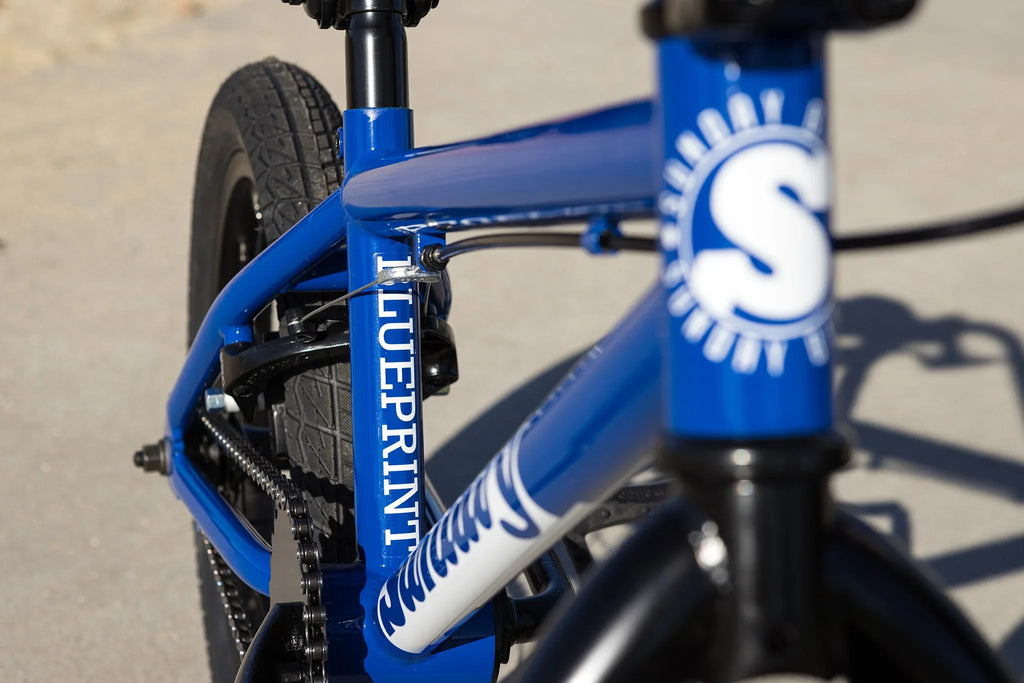

• Frame: Sunday Blueprint, 15.5" top tube
• Fork: Sunday Blueprint 16" fork w/ 2-piece steerer tube

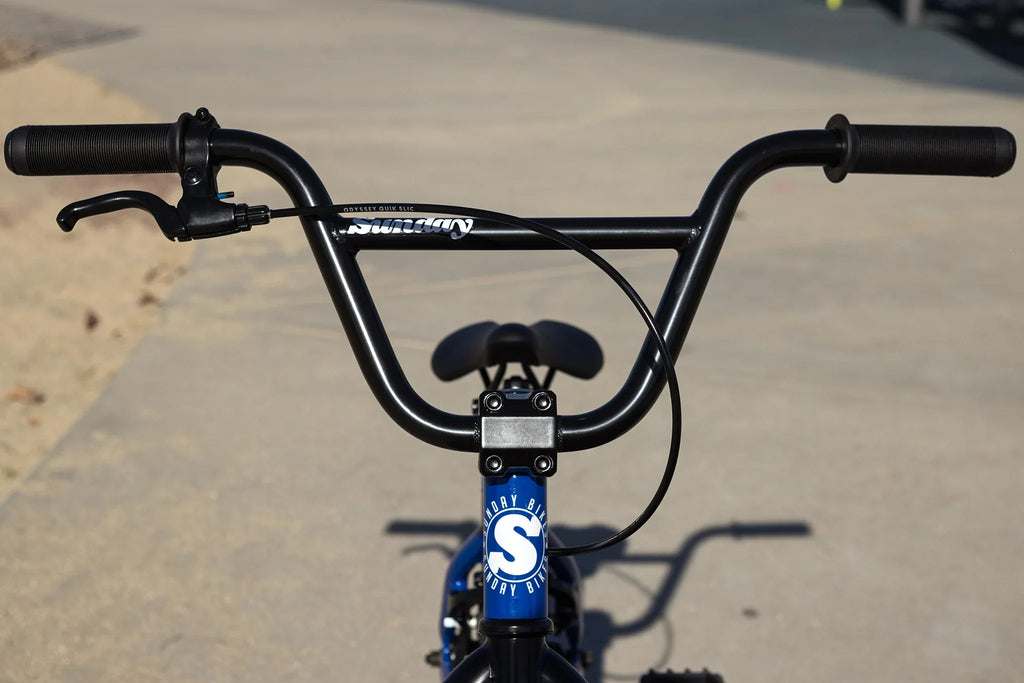

• Handlebar: Sunday, 2-piece

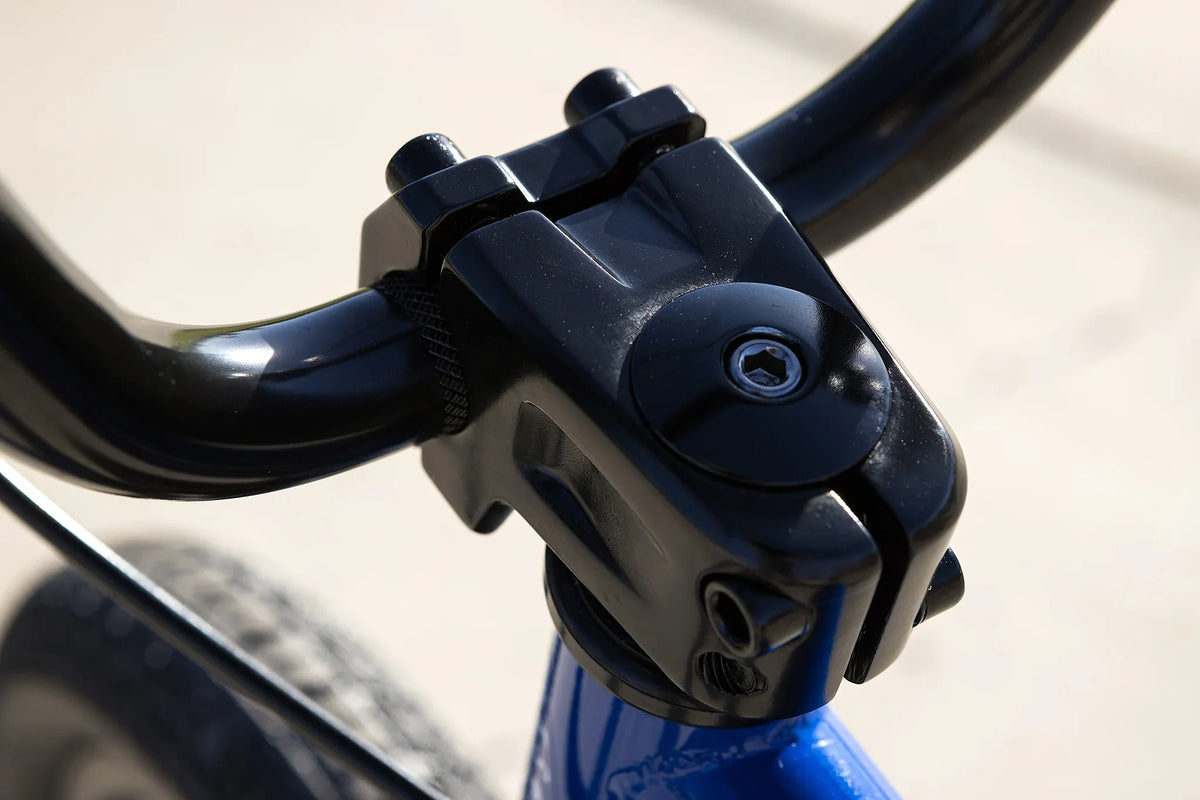

• Stem: Front load, aluminum, 40mm
• Headset: Traditional 1-1/8"
• Alloy Cap: Aluminum cap w/ star nut
• Brake Lever: Junior Aluminum, Short Reach, U-brake compatible

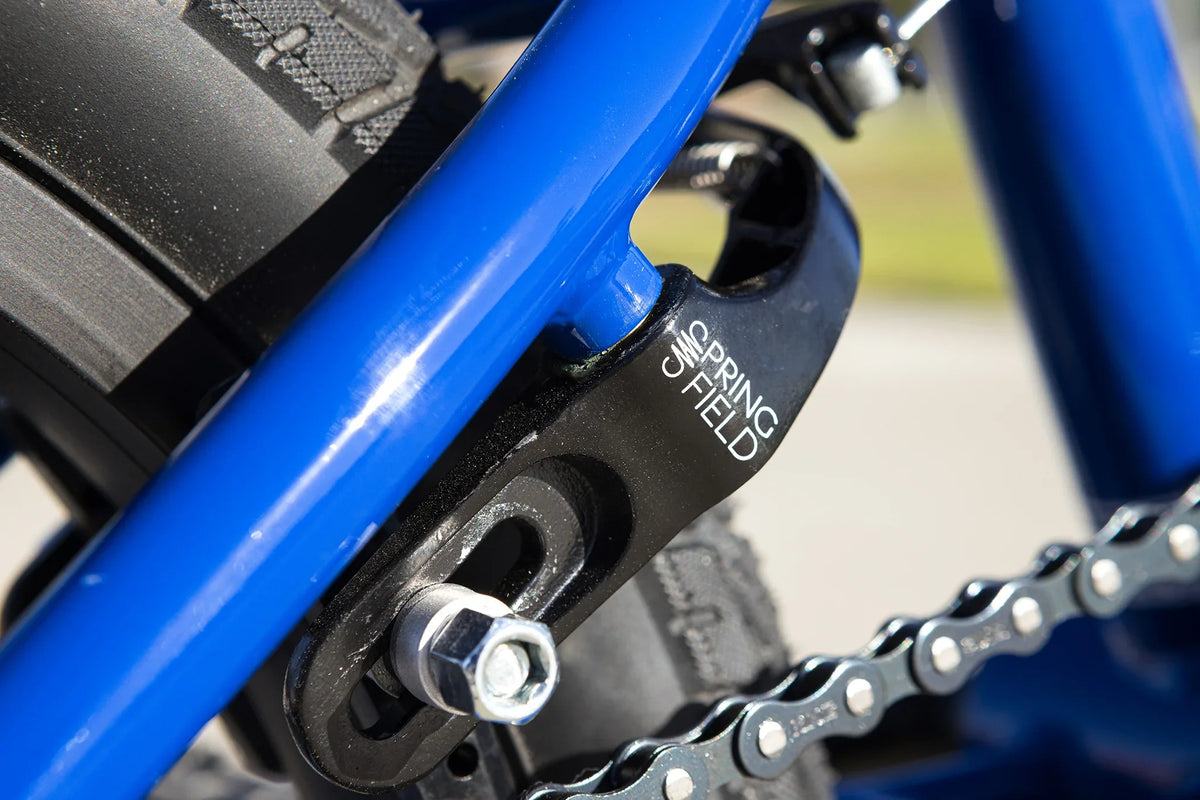

• Brakes: Odyssey Springfield U-brake

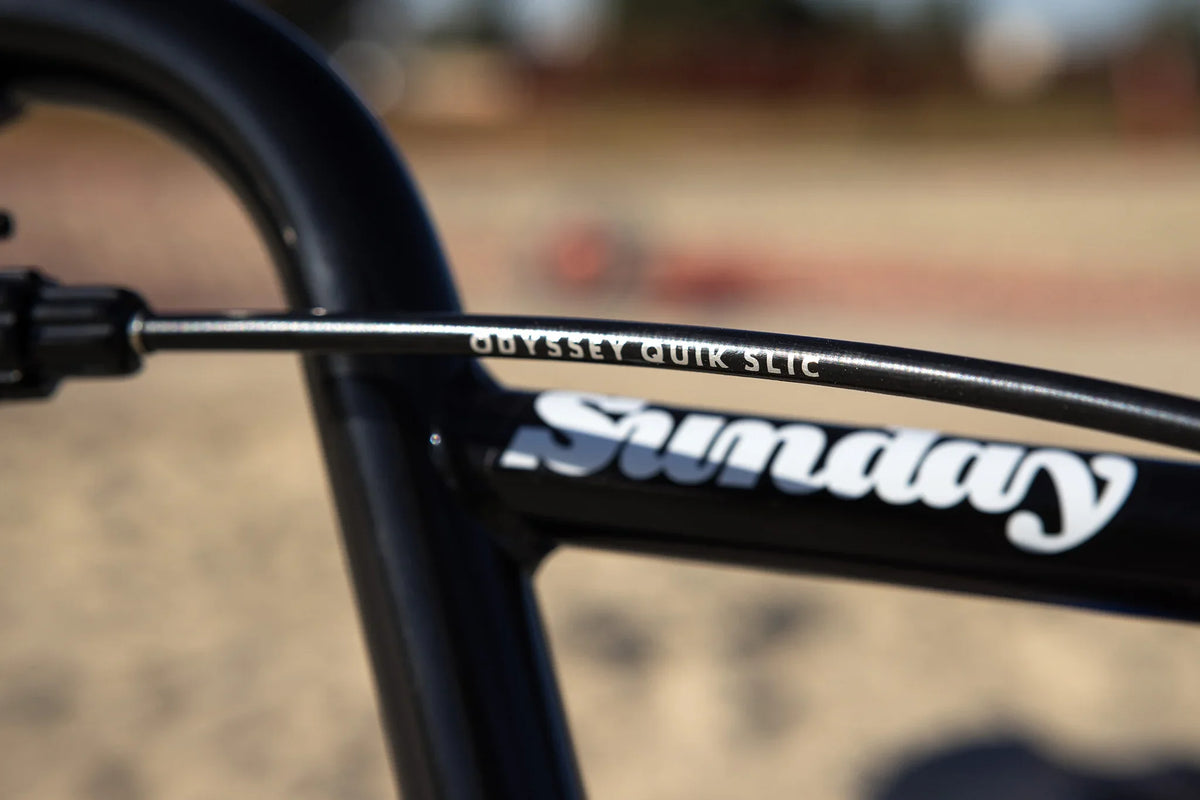

• Brake Cable: Odyssey Quik Slic

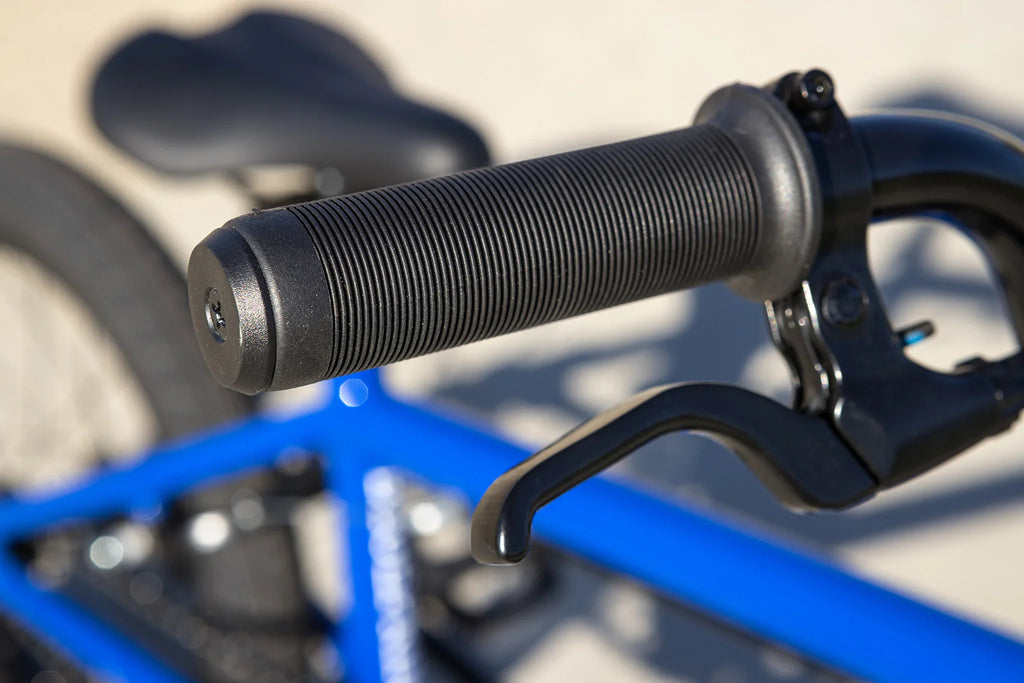

• Grips: Velo Junior
• Seat: Velo Junior, adjustable
• Seat Post: 1" steel
• Seat Clamp: Integrated

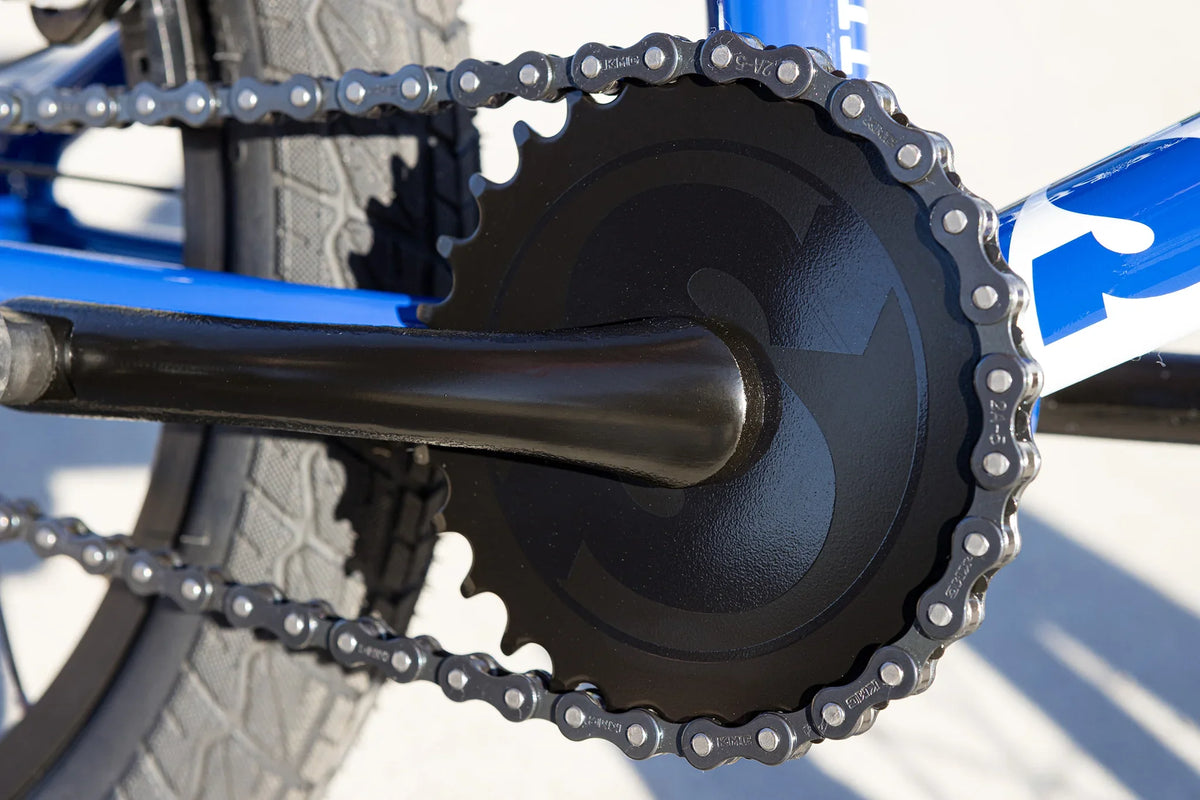

• Sprocket: Sunday S-Logo, 28-T, steel
• Cranks: 115mm, 1-piece
• BB Parts: Loose-ball, American, 19mm

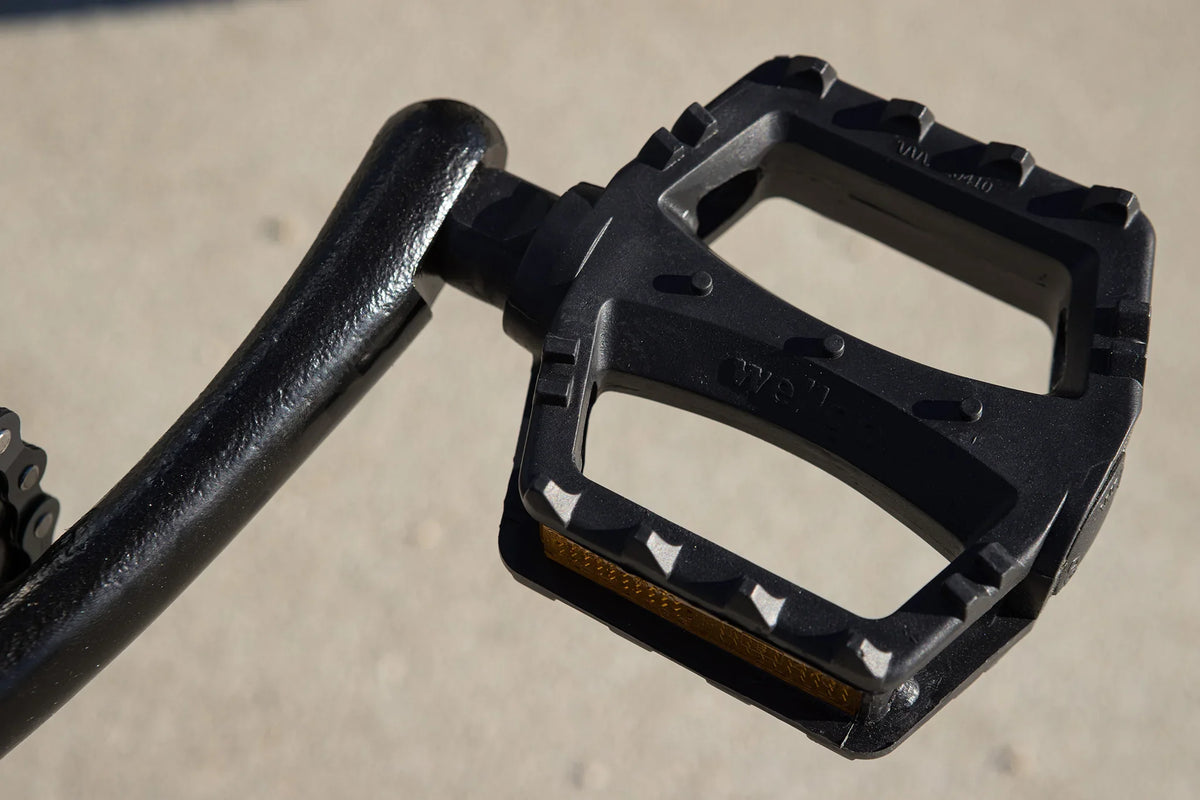

• Pedals: Wellgo Junior platform, plastic
• Rims: P-7X aluminum, 16", 20H

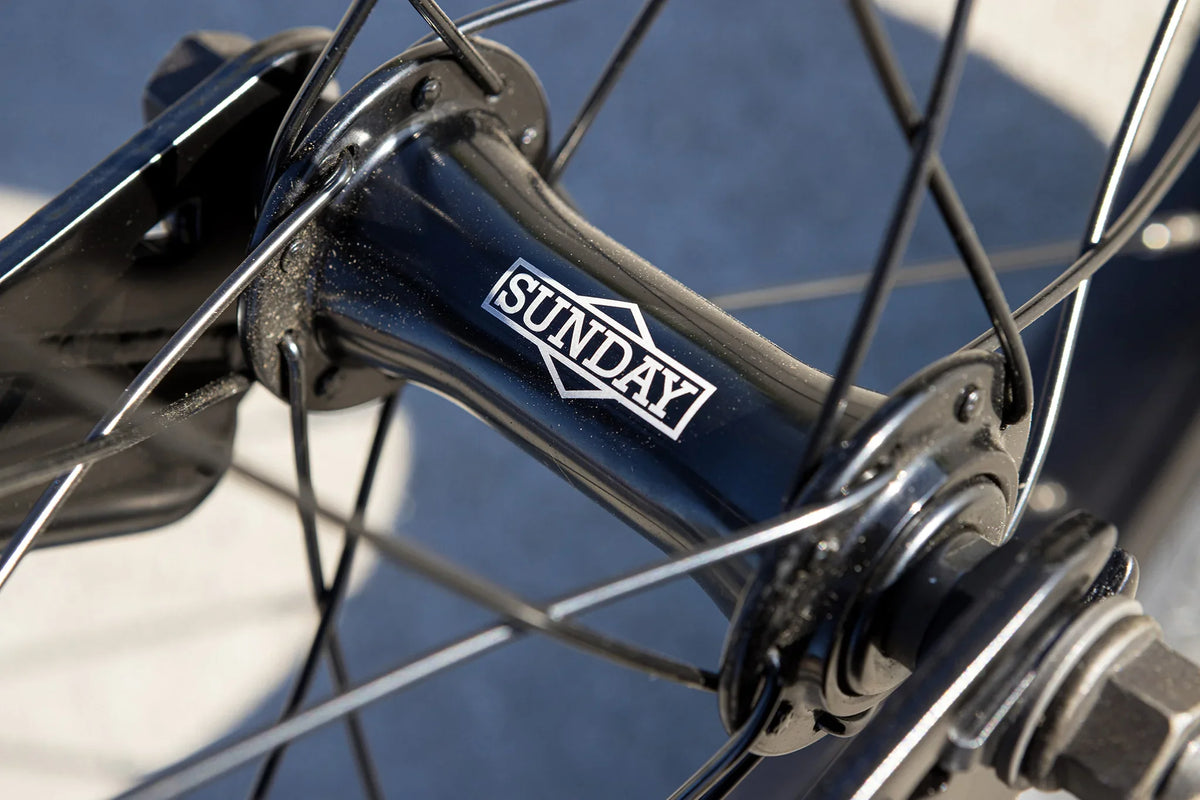

• Front Hub: Sunday, 20H, low-flange, loose-ball, 3/8" axle
• Rear Hub: 20H, loose-ball, 3/8 axle w/ Odyssey 13T freewheel
• Spokes: 14g steel, black

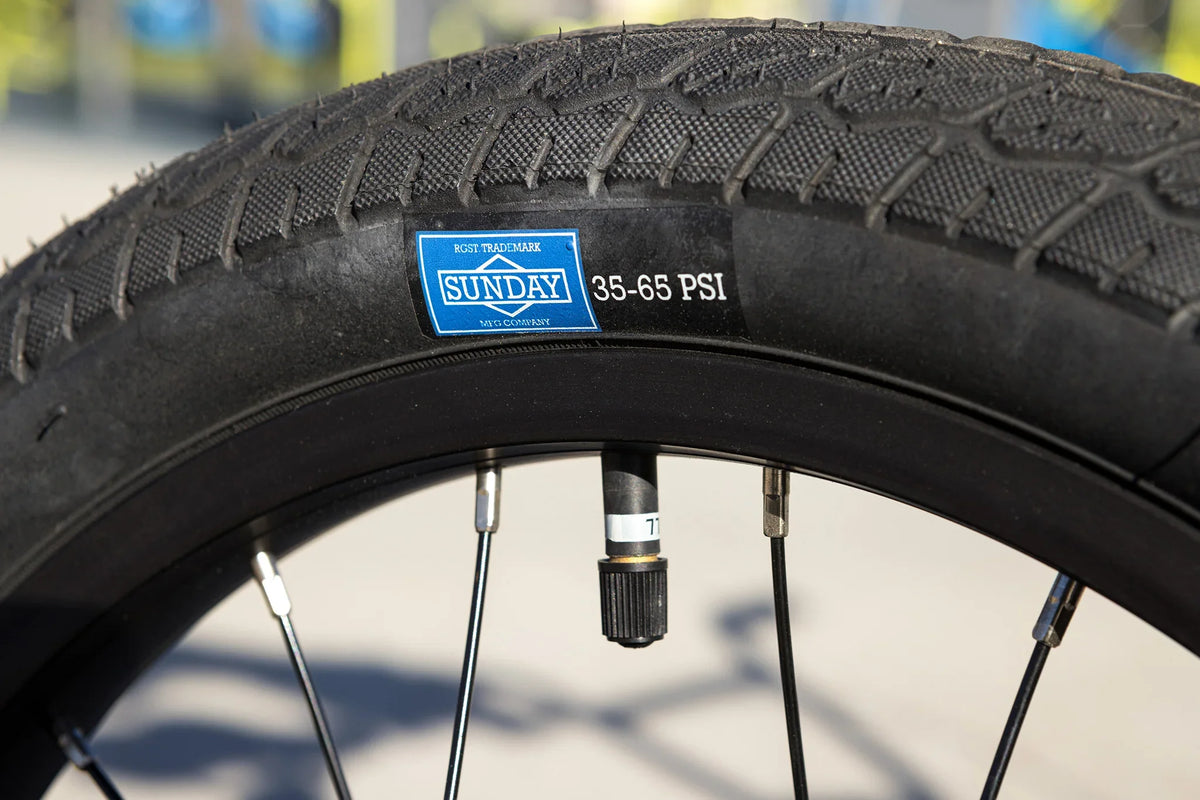

• Tires: Sunday Current, 16x2.1" (F&R)
• Chain: KMC S1
• Approx. Weight: 21.73lbs (with brakes)

Frame Geometry

• Top Tube Length: 15.5"
• Head Tube Angle: 73.5°
• Seat Tube Angle: 71°
• Chainstay Length: 11.5”
• Bottom Bracket Height: 9.25"
• Standover: 6.9"

Handlebar Geometry

• Rise: 6.75"
• Width: 23"
• Backsweep: 12°
• Upsweep: 1°
